Our Products

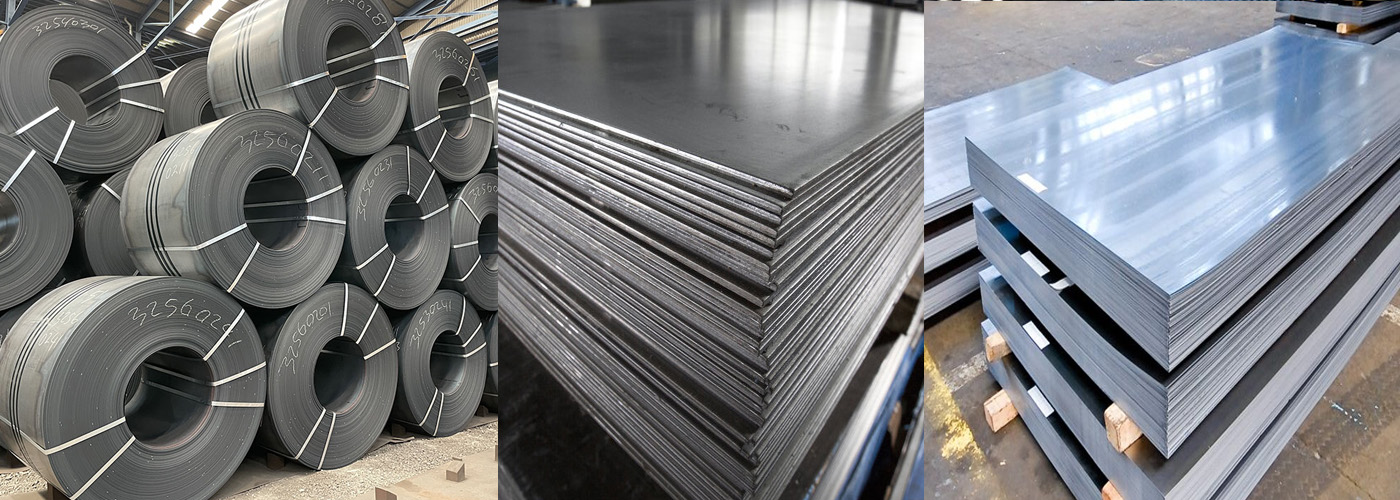

Hot Rolled – Coils, Sheets & Plates
| Thickness | 1.2 - 25.4mm |
|---|---|
| Width | 700mm-2100mm |
| Grades | Re-rolling/ Drawing Grades, Tube and Pipe/ Forming Grades, Structural/ Medium Tensile Tube/ Forming Grades, LPG/ Low Pressure Vessel Grades, HSLA Grades, Medium Carbon Grades, Weather Resistance Grades, Line Pipe Grades, Chequered Plates |

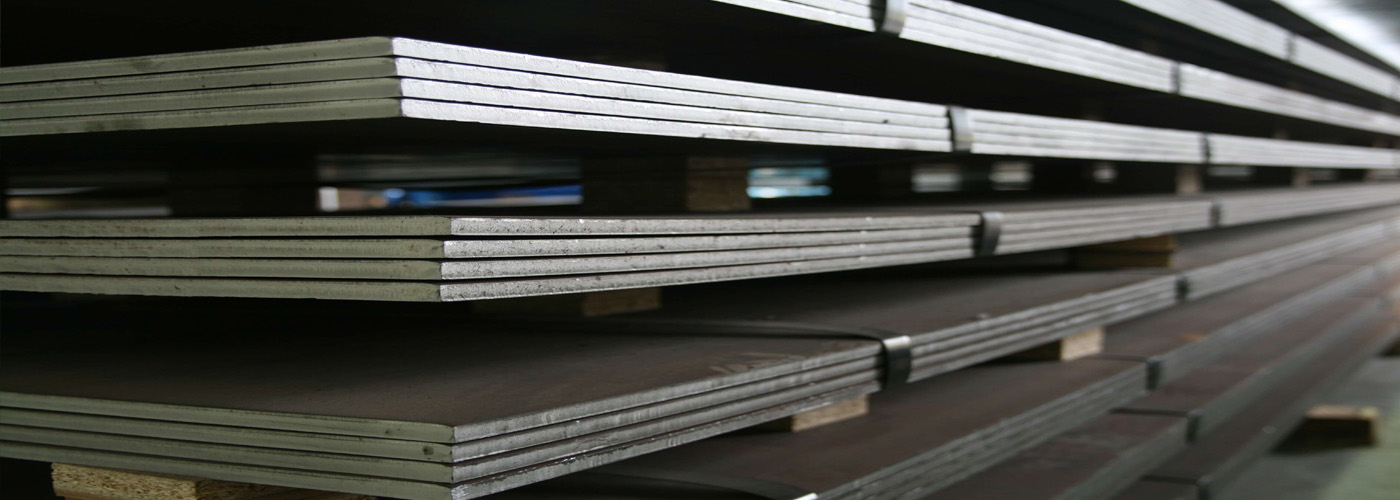

Hot Rolled – Cut-to-Length Sheets
| Thickness | 1.2 - 25.4mm |
|---|---|
| Width | 900-2050 mm |
| Length | 1000 – 13000 mm |

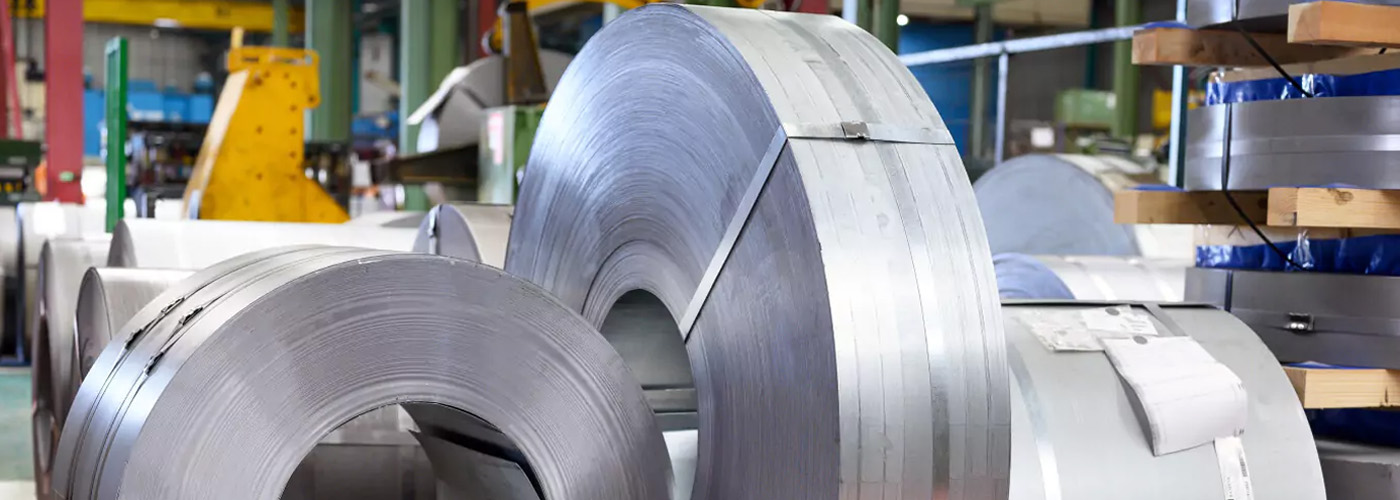

Hot Rolled – Pickled & Oiled (HRPO)
| Thickness | 1.6 – 6.0mm |
|---|---|
| Width | 1650mm |

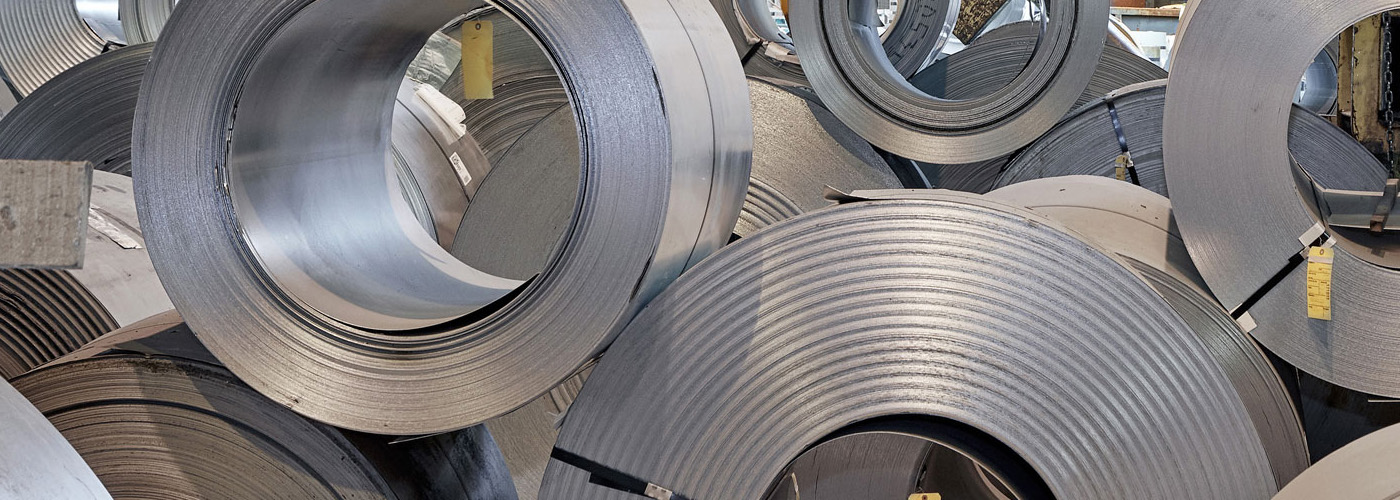

Hot Rolled –Skin Pass Pickled & Oiled (HRSPO)
| Thickness | 1.6 – 2.6mm |
|---|---|
| Width | 1650mm |

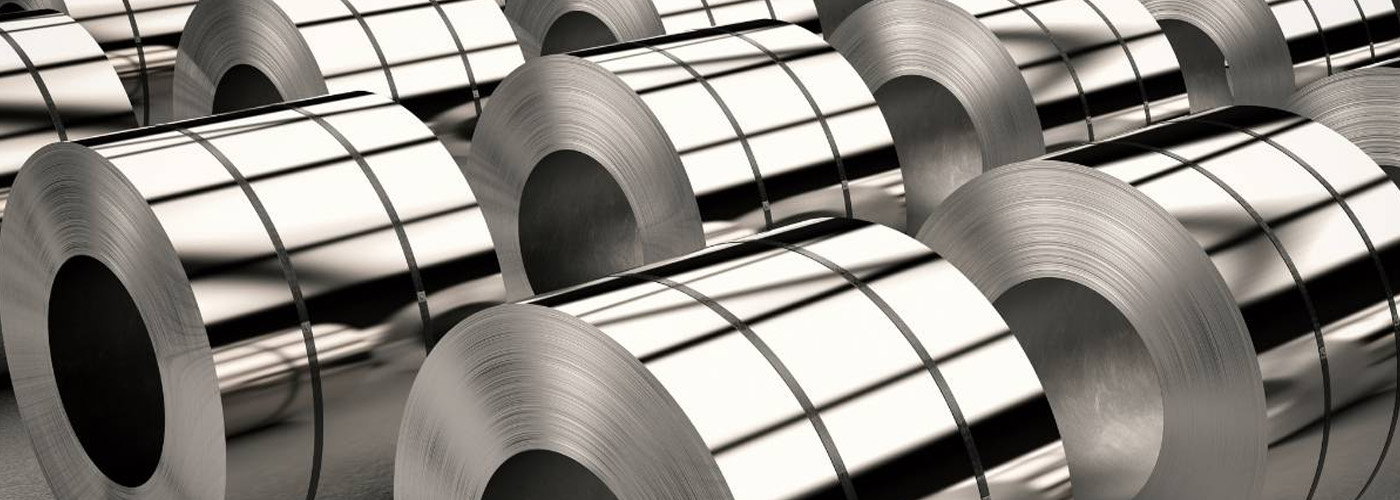

Cold Rolled Steel Product Grades & Standards
| Classification | EN | JIS | ASTM | BIS | JFS |
|---|---|---|---|---|---|
| CQ | DC01 | SPCC | CS A,B & C | CR1 | - |
| DQ | DC03 | SPCD | DS A & B | CR2 | JSC270C |
| DDQ | DC04 | SPCE | - | CR3 | JSC270D |
| EDDQ | DC05 | SPCF | DDS | CR4 | JSC270E |
| IF | DC06 | SPCG | EDDS | CR5 | JSC270F |

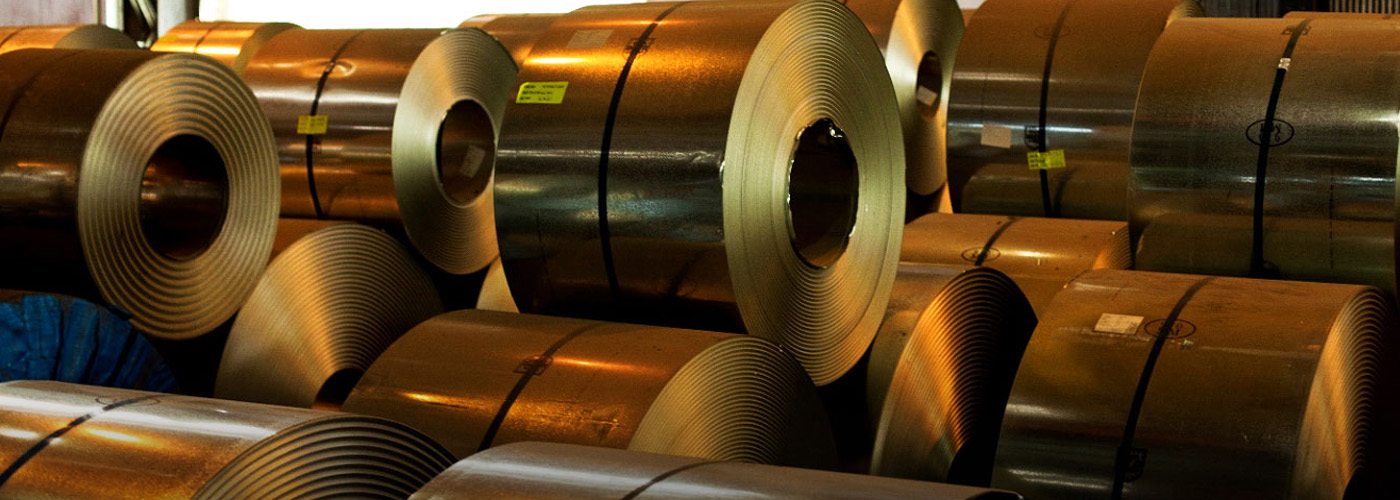

Galvanized Coil and Sheets
| Product Name | Galvanized Steel Coils / Sheets |
|---|---|
| Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or As Requirement |
| Thickness | 0.12mm-4.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm/3.0mm/4.0mm |
| Width | 600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm/1250mm/1500mm |
| Zinc Coating | Z30g/m2-Z600g/m2 |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) or Zero Spangle |

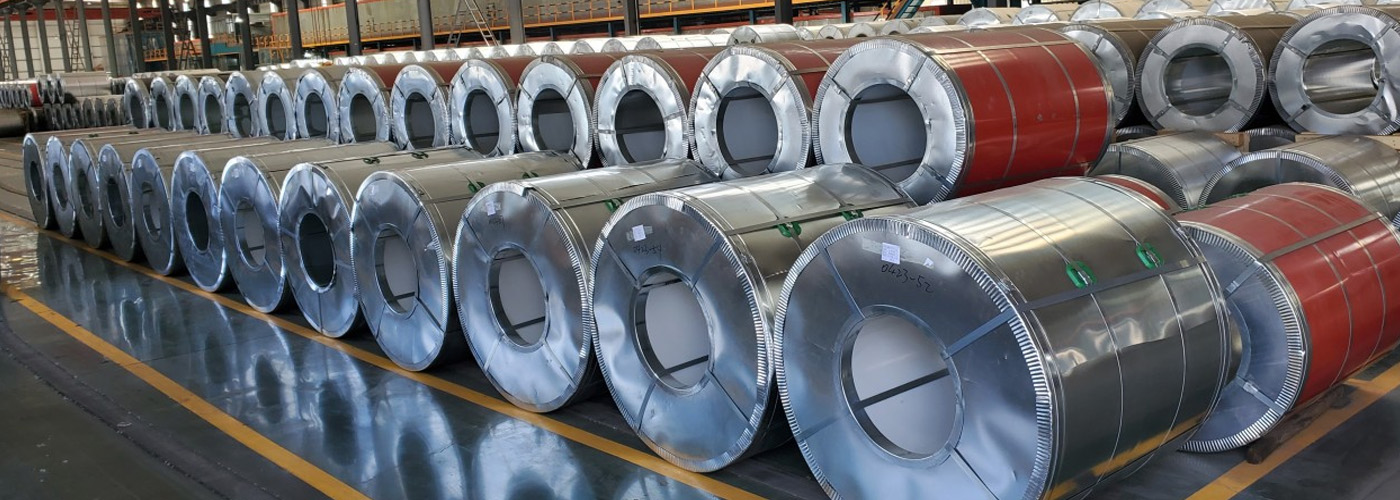

Prepainted Galvanized Steel Coil Specification
| Product Name | Prepainted Galvanized Steel Coils（PPGI） | Pre-Painted Aluzinc Steel Coils (PPGL) |
|---|---|---|
| Thickness | 0.11-0.8mm | 0.11-0.8mm |
| Width | 720mm-1250mm | 720-1250mm |
| Coating mass | 30g/m2-275g/m2 (Zinc) | 30g/m2-185g/m2 (AZ) |
| paint | Stand polyester(PE),Smp,HDP,PVDF | Polyester(PE),Smp,HDP,PVDF |
| COLOR | RAL SCAL | RAL SCALE |
| COIL INNER DIAMETER | 508mm or 610mm | 508mm or 610mm |
| Coil weight | 3mt-5mt | 3mt-5mt |
| Base meterial | Hot-dip galvanized steel cold rolled | Hot-dip Aluzinc steel cold rolled |

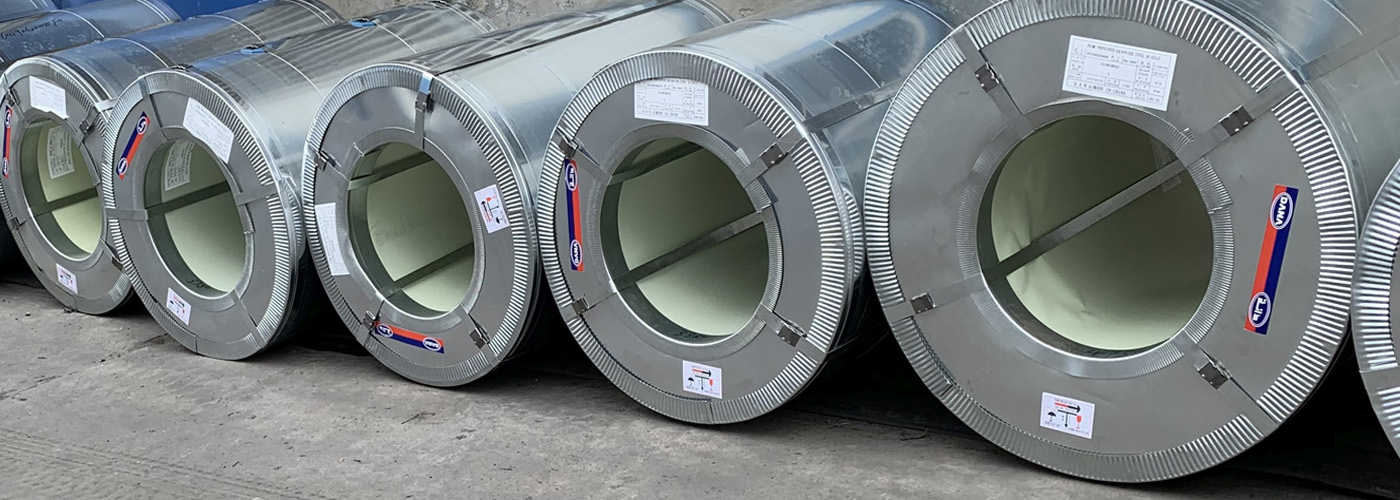

Prepainted Galvanized Steel Coil
| ASTM A755M-03 | EN10169:2006 | JIS G3312:2012 | |
|---|---|---|---|
| COMMERCIAL QUALITY | CS | DX51D+Z | CGCC |
| STRUCTURE STEEL | SS GRADE 230 | S220GD+Z | CGC340 |
| SS GRADE255 | S250GD+Z | CGC440 | |
| SS GRADE275 | S280GD+Z | CGC490 | |
| SS GRADE340 | S320GD+Z | CGC570 | |
| SS GRADE550 | S350GD+Z | ||
| S550GD+Z |

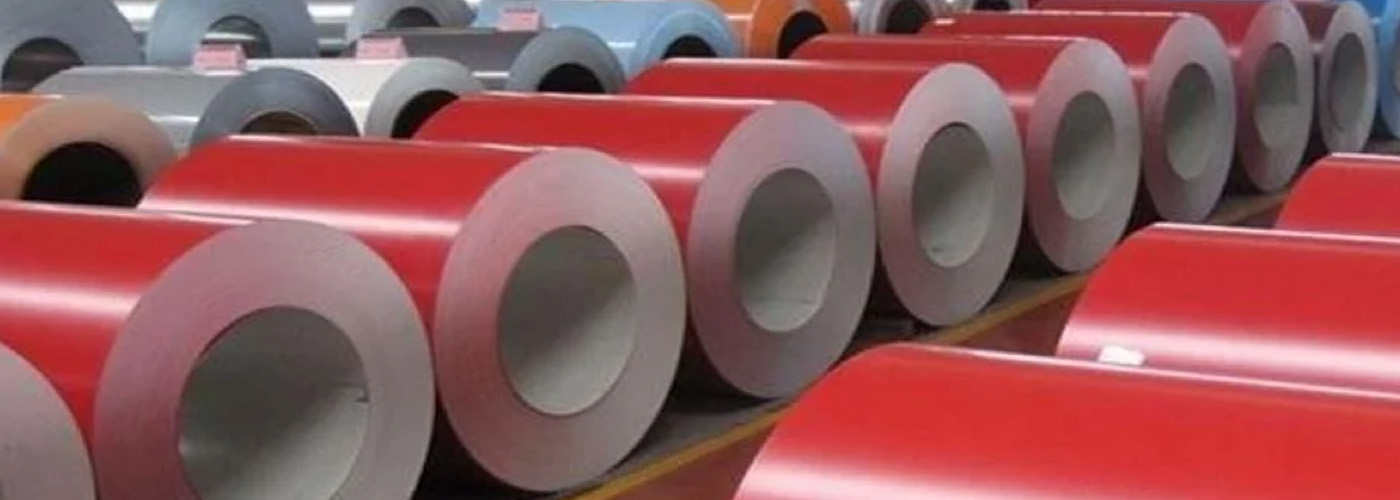

Pre Painted Aluzinc Steel Coil
| ASTM A755M-03 | EN10169:2006 | JIS G3312:2012 | |
|---|---|---|---|
| COMMERCIAL QUALITY | CS | DX51D+Z | CGCC |
| STRUCTURE STEEL | SS GRADE 230 | S220GD+Z | CGC340 |
| SS GRADE255 | S250GD+Z | CGC440 | |
| SS GRADE275 | S280GD+Z | CGC490 | |
| SS GRADE340 | S320GD+Z | CGC570 | |
| SS GRADE550 | S350GD+Z | ||
| S550GD+Z |

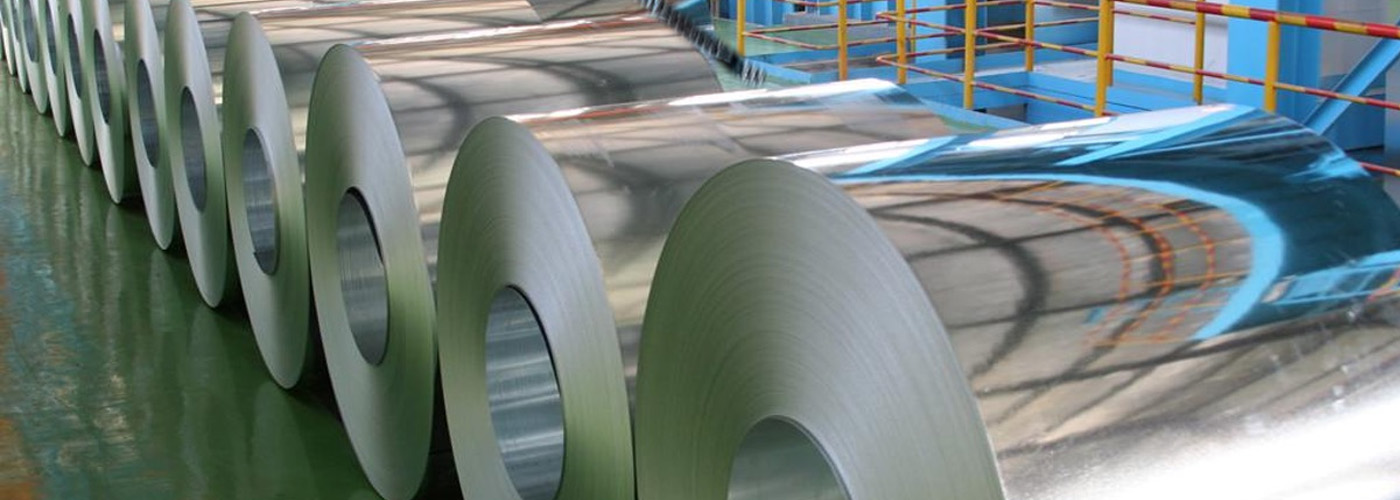

Hot-dipped Galvalume Steel Coil Standard & Grade
| ASTM A653M-06a | EN10327:2004 | JIS G 3321-2010 | AS-1397-2001 | ||
|---|---|---|---|---|---|
| COMMERCIAL QUALITY | CS | DX51D+AZ | SGLCC | G1+AZ | |
| STRUCTURE STEEL | SS GRADE 230 | S220GD+AZ | SGLC400 | G250+AZ | |
| SS GRADE255 | S250GD+AZ | SGLC440 | G330+AZ | ||
| SS GRADE 275 | S280GD+AZ | SGLC490 | G350+AZ | ||
| SS GRADE 340 | S320GD+AZ | SGLC570 | G450+AZ | ||
| SS GRADE 550 | S350GD+AZ | G500+AZ | |||
| S550GD+AZ | G550+AZ | ||||
| S550GD+Z |

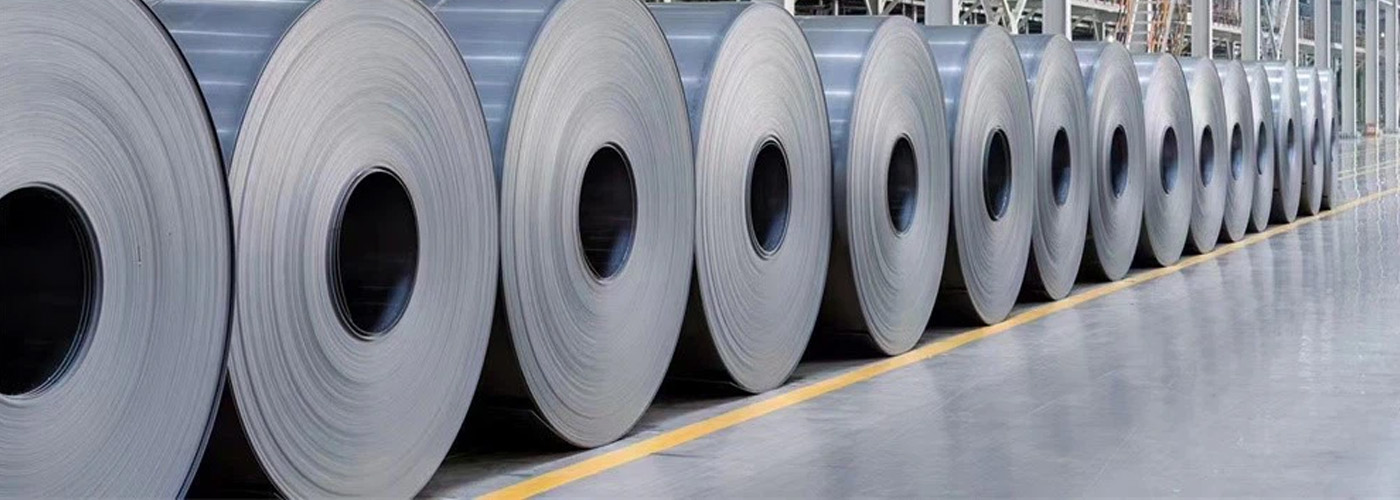

Zam® Specifications
| MATERIAL THICKNESS | 0.014" through 0.130" | ||
|---|---|---|---|
| MATERIAL WIDTH | 24" through 61" | ||
| ASTM SPECIFICATION | ASTM A1046/A1046M Type 1 | ||
| STEEL GRADES | Commercial Steel | Deep Drawing Steel | |
| Extra Deep Drawing Steel | Forming Steel | ||
| HSLA Steel Grades | Structural Steel Grades | ||
| COATING WEIGHT | ZM30 | ZM40 | ZM50 |
| ZM60 | ZM70 | ZM75 | |
| ZM90 | ZM100 | ZM115 | |
| (Please inquire about any coating weights not listed.) | |||
| COIL WEIGHT | 10,000 lbs. maximum through 55,000 lbs. maximum | ||
| COIL ID | 20" and 24" | ||
| AFTER TREATMENT (upon request) | Chemical Treatment (RoHS Compliant Available) Oiling Acrylic (RoHS Compliant, Please Inquire) Stenciling |

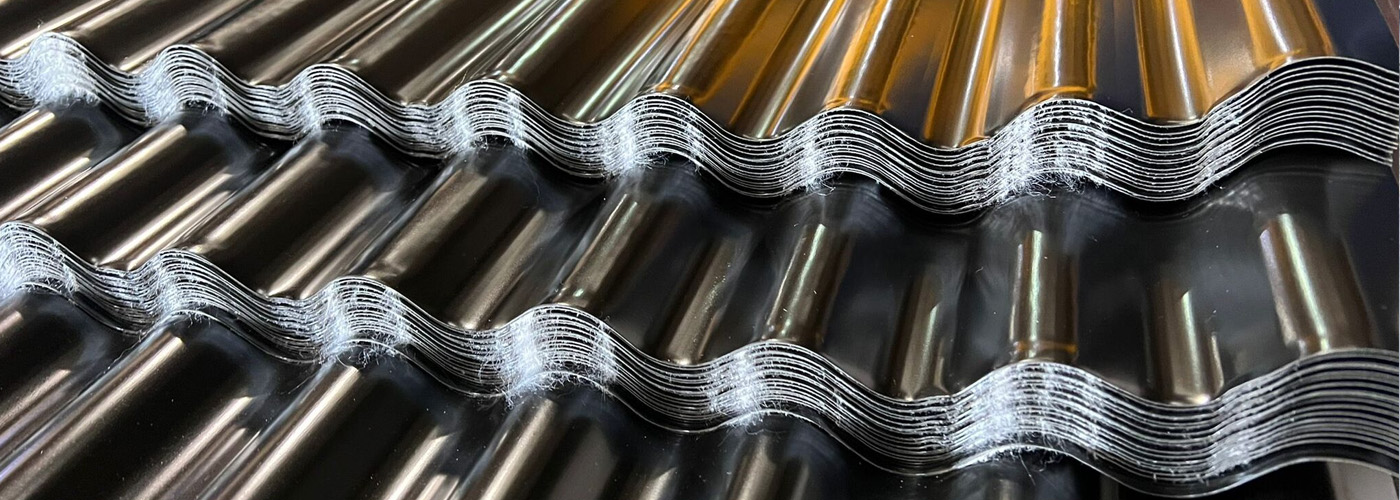

Corrugated Sheets
| MATERIAL THICKNESS | 0.014" through 0.130" | ||
| MATERIAL WIDTH | 24" through 61" | ||
| ASTM SPECIFICATION | ASTM A1046/A1046M Type 1 | ||
| STEEL GRADES | Commercial Steel | Deep Drawing Steel | |
| Extra Deep Drawing Steel | Forming Steel | ||
| HSLA Steel Grades | Structural Steel Grades | ||
| COATING WEIGHT | ZM30 | ZM40 | ZM50 |
|---|---|---|---|
| ZM60 | ZM70 | ZM75 | |
| ZM90 | ZM100 | ZM115 | |
| (Please inquire about any coating weights not listed.) | |||
| COIL WEIGHT | 10,000 lbs. maximum through 55,000 lbs. maximum | ||
| COIL ID | 20" and 24" | ||
| AFTER TREATMENT (upon request) | Chemical Treatment (RoHS Compliant Available) Oiling Acrylic (RoHS Compliant, Please Inquire) Stenciling |

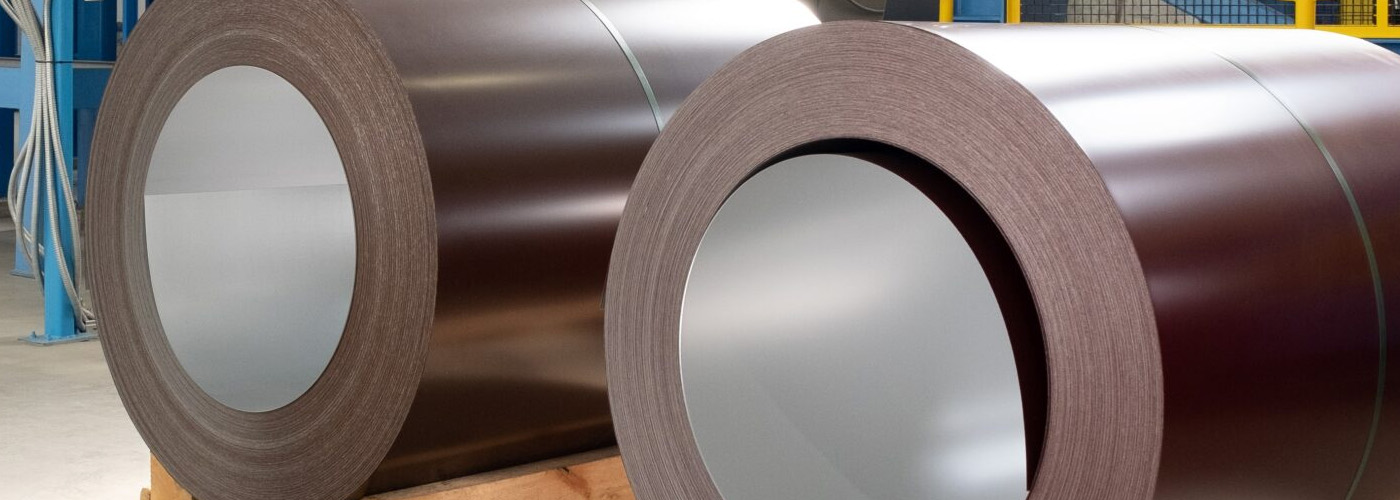

Prepainted Coils
| MATERIAL THICKNESS | 0.014" through 0.130" | ||
| MATERIAL WIDTH | 24" through 61" | ||
| ASTM SPECIFICATION | ASTM A1046/A1046M Type 1 | ||
| STEEL GRADES | Commercial Steel | Deep Drawing Steel | |
| Extra Deep Drawing Steel | Forming Steel | ||
| HSLA Steel Grades | Structural Steel Grades | ||
| COATING WEIGHT | ZM30 | ZM40 | ZM50 |
|---|---|---|---|
| ZM60 | ZM70 | ZM75 | |
| ZM90 | ZM100 | ZM115 | |
| (Please inquire about any coating weights not listed.) | |||
| COIL WEIGHT | 10,000 lbs. maximum through 55,000 lbs. maximum | ||
| COIL ID | 20" and 24" | ||
| AFTER TREATMENT (upon request) | Chemical Treatment (RoHS Compliant Available) Oiling Acrylic (RoHS Compliant, Please Inquire) Stenciling |
